FIBER OPTIC CABLES
Indoor/Outdoor Distribution Tight Buffered FO Cable
Tight-Buffered Distribution cable is designed specifically for indoor distribution applications requiring low to higher core-counts. Available as Multi-mode or Single-mode (either G.652D, G.657A compliant), it provides the bend-insensitivity and robustness essential to a successful FTTH deployment. Circular construction and a Kevlar yarn strength member make this cable ideal for indoor deployments where riser and/or containment spaces are limited. It is Riser Rated and complies to UL1666.
Outdoor Armored MLT FO cable [D113x]
FTTH Indoor Drop FO Cable [D114x-ID]
FTTH Outdoor Drop FO Cable [D114x-OD]
Outdoor Unarmored MLT FO Cable [D115x]
Outdoor Dielectric CLT FO Cable [D116x]
Outdoor Metallic CLT FO Cable [D117x]
Indoor Outdoor CLT FO Cable [D118x]
Duplex Zipcord FO Cable [D119x-ID]
Breakout Tight-Buffered FO Cable [D110x]
Indoor/Outdoor Multi-Loose Tube (MLT) FO cable [D111x]
FIBER OPTIC PATCH PANEL
Fiber Optic Patch Panels are 19” Rack-mountable enclosures for splicing and/or termination of optical fibers in an indoor environment. Available loaded with Single-mode pigtails, splice accessories and adaptors, the solution provides an optical channel that is guaranteed to be compliant with the ISO/IEC 11801 International Standard for Structured Cabling and is UL Certified.

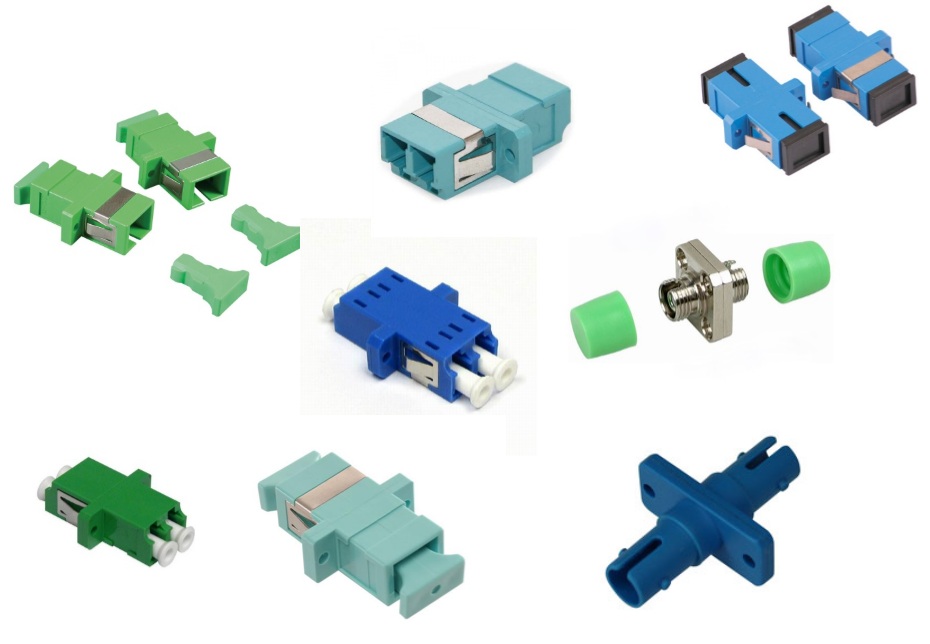

FO COUPLING ADAPTERS
FO Adapters have “Excellent changeability and directivity”. 100% Optic test (Insertion Loss). It has Ceramic and phosphor bronze sleeve tube. Accurate mounting dimensions. Complies with IEC 61754-4 and is UL Certified.

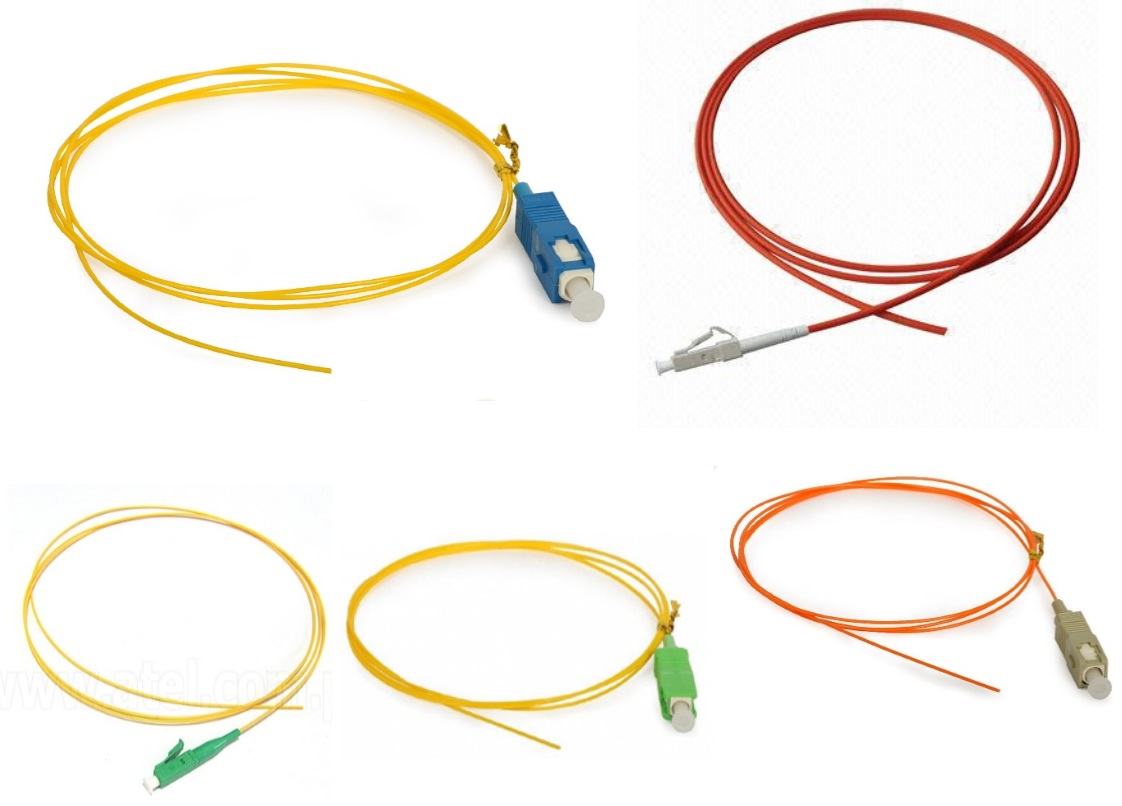

FO PIGTAILS
Suitable for fiber splicing in Patch panels, ODF and Joint Closures. Available in SM and MM. Available in SC, LC, ST, FC terminations. Available in different lengths. It is Easy to install and terminate. Connector is compliant with Telcordia GR-326-CORE. It has Ultra low Return & Insertion loss and made of LSZH sheath. Single mode pigtails are available in ITU-T G652D (zero water peak fiber) or ITU-T G657A1 specifications.

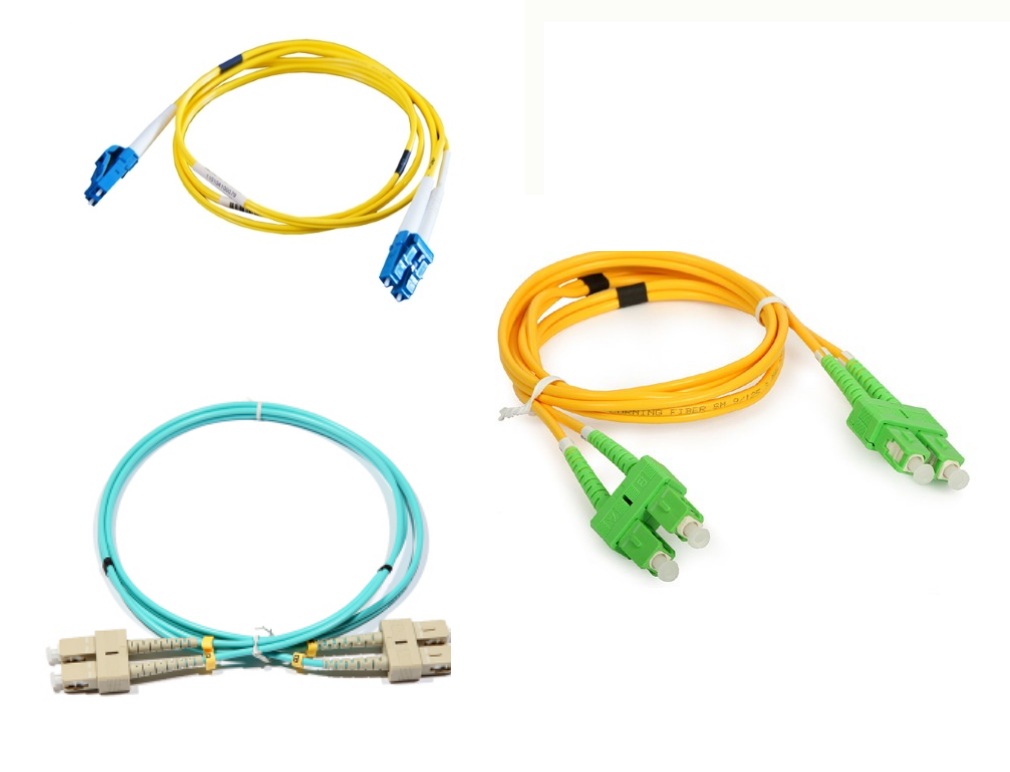

FO PATCH CORDS
Fiber Optic patch cords are state-of-art product which are made through advanced polishing and assembly procedures. The single mode connectors are Angled Physical Contact (APC) polish. Different connector types may be combined to produce ‘hybrid’ patch cords. All patch cords are tested to ensure that the highest quality standards are met.
Fiber Patch cord Simplex
Fiber Patch cord Duplex
FIELD INSTALLABLE CONNECTOR (FIC)
The field assembly connector is a cost-effective, pre-polished, field-installable connector, designed for ease of installation and re-use if so required. It requires no field polishing or epoxy, so no heat-curing devices nor special tooling are needed to facilitate the termination of the fiber.
See Video: Installation of FIC SC/APC connector to Indoor Drop FO Cable
