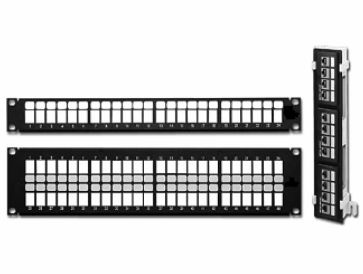

UTP Patch Panel unloaded, 252Kb
Part Number
D0749255-xxx
D0740089-00D
Application
DME ProLink™‘s high-density, field-configurable rack mount and wall-mount patch blocks are compatible with all QuickPort modules to maximize versatility with a variety of media applications and enable easy upgrades.
Features
• High-density equal to 110-style, non-field configurable, Patch panels.
• Rear cable management support bar.
• Flush mount.
• White, write-on blocks and port numbers for port identification.
Standards of Compliance
Meets or exceeds all applicable standards: UL listed, CSA Certified; complies with TIA/EIA-568-A.
Physical Specifications
Capacity: 24- and 48-port, 12-port patch block
Materials: 14 AWG steel, matte black painted finish with white silkscreening.
Mounting: 19" equipment rack, or wall-mount bracket
Color: Black
Design Considerations
• Color-coded front window labeling for easy port identification.
• Mounts on industry standard 19" equipment racks.
• Panel offered in 12-, 24-, 48- and 96-port configurations and a Universal U89 12-Port Patch Block for wall-mount applications.
• Connector modules are grouped in sets of six.
• Includes mounting stand offs for rear cable management bar(s).
Typical Specification
Patch panel shall be field-configurable 24-port density in 1.75" H rack space and 48-port density in 3.5" rack spaces. Rear cable management bar shall be included. Typical front labeling of traditional patch panels. Panel shall accept full range of manufacturer’s connectors. Additionally, the patch block shall be wall-mount style on an industry standard 89D bracket and shall include removable write-on label strips.

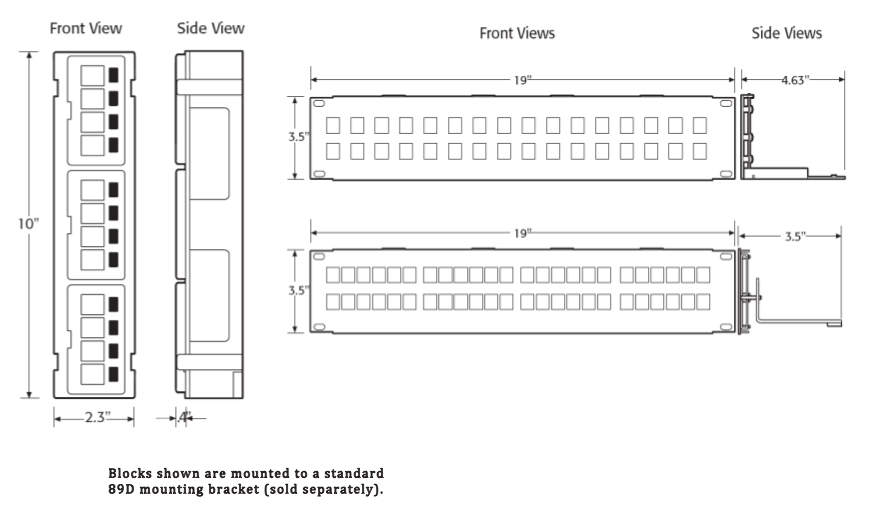

Dimensional Line Art
