CAT6A U/UTP Cable

Download PDF Product Sheet

CAT6A U/UTP Cable 744Kb

Part Number
D018x-UUlsc

Category
U/UTP CAT6A-4P, 23AWG

Standards
ISO/IEC11801, EN 50288-10-1, EN 50173, IEC 61156-5, IEC 60332-1-2, EN 60332-1-2, IEC 60754-2

Conductor
Material: Solid Bare Copper
Nom. O.D (mm): 0.570 up: +0.005 down:-0.005

Insulation
Material: HDPE
Diameter: 1.03±0.03mm

Sheath
Thickness: 0.65±0.05 mm (Avg.)
External O.D. : 6.9±0.4 mm
Surface: Clean,Frap,Satiation
Material: LSZH (complies RoHS)
Color: According to the requirement

Sheath Physical Properties
Before Aging Tensile Strength (Mpa) ≥ 10.0
Elongation(%) ≥ 125
Aging Period (°C×hrs) 100 °C ×24h×7d
After Aging Tensile Strength(Mpa) ≥8.0
Elongation(%) ≥ 100
Cold bend (­-20±2 °C ×4h) 8×Cable O.D.,
No visible cracks

Electrical Characteristics (20°C)
1.0 ­- 500.0 MHz Delay Shew (ns/100m) ≤45; NVP 69
DC Resistance (Ω/100m) max 9.5
DC Conductor Resistance Unbalance (%) max 5.0

 Surface Printing
Letter height: 3.0±0.3mm
Color: Black
Print error & Space: ≤±0.5%, 1m

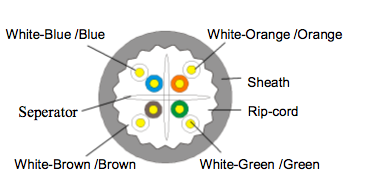

 Core Color
1 White­ Blue /Blue
2 White­Orange /Orange
3 White­Green /Green
4 White­ Brown /Brown
Packing
Wooden Tray & Carton
Packing Length
305±1.5mRip­cord: Yes
Drain wire: No

Note
The fire retardant of the outer sheath should be complying with national standard.
