Part Number
D017x-UUlyc
Description
DME PROLINK’s Category 6 horizontal cable guarantee’s Category 6 performance ensuring maximum Data-throughput and efficiency. Cable Performance exceeding Category-6 specifications of 250 MHz. This specification covers the requirement for 4-pair cable for use in Horizontal cabling system. The performance of cable is verified to ISO/IEC 11801 and ANSI/TIA/EIA-568 C2
Standards
Performance: ISO/IEC 11801, ANSI/TIA/EIA-568 C2
Fire rating: IEC 60332-1
Print Durability: UL 444 section 6.7

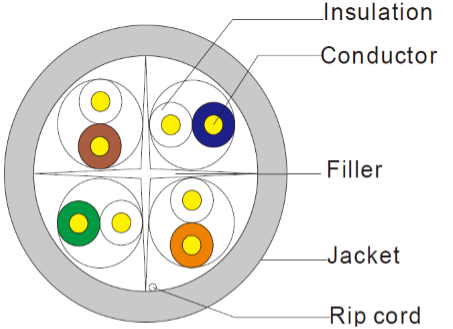

Conductor
Wire AWG: 23 AWG Solid Bare Annealed Copper
Diameter range in mm: 0.55< = Φ <0.610
Material: Copper
Plating: Bare
Elongation: 15% per EN 50288-1
Insulation
Material: Foam-skin Polyethylene or Solid Polyethylene
Overall diameter Min. (mm): 0.89
Overall diameter Max. (mm): 1.00
Jacket
Material: FR LSZH
Strip ability over 50mm Max.: 80N
Overall diameter (D) (mm) : 5.8 +/- 0.3
The core shall be enclosed by FR LSZH jacket.
Jacket color shall be in accordance with RAL color resister no.840-HR.
Min. bending radius
During installation: 8 x D
After installed: 4 x D
Pulling Force
Max. 90N
Operating temperature
-20°C ∼ 70°C
Installation temperature
-5°C ∼ 50°C
The conductor identification shall be indicated by coloring the insulation used on each conductor of a twisted pair. The color code shall follow the industry standard color code. (Refer to IEC 60304 for appropriate colors).
[table id=7 /]
Electrical performance shall comply with ISO/IEC 11801, ANSI/TIA/EIA-568B.2-1
Fire rating Requirements
UTP cable with FR LSZH jacket shall comply with the test described in IEC 60332-1.
Sheath Marking
The marking shall be ink-printed legibly on the surface of finished cable with each 1 meter interval.
Packing
The products shall meet the packaging requirements of any applicable control drawings, inspection instructions and so on provided.
‘Reel-in-Box’ Packaging Requirements Cable shall be in one continuous length, cutting or splicing lengths of cable to achieve the total required length is unacceptable.
All product packaging shall contain labeling and artwork affixed or printed upon the outside of boxes in compliance to control documentation.
Cable for ‘reel-in-box’ cable packaging is to be wound upon a plastic ‘reel-in-box’ shall contain cable length of 305meter per box.
