CAT3 Multicore Cable

UTP CAT3 Cable

Download PDF Product Sheet

CAT3 U/UTP Cable 540Kb

CAT3 U/UTP 24AWG
Part Number
D015x-prsc

Applications
10 Base -T
100 Base -T4
Analog Telephone

Standards
ISO/IEC11801, ANSI/TIA/EIA-568C.2 , EN 50173,  YD/T1019

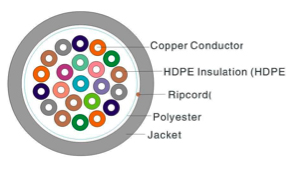

Conductor
Material: Solid Bare Copper
Nom. O.D (mm): 0.500 up: +0.005 down:-0.005

Insulation
Material: HDPE
Diameter: 0.87±0.03mm

Sheath (25-Pair Cable)
Thickness: 1.0±0.4 mm
External O.D. : 11.5±0.8 mm
Surface: Clean, Frap, Satiation
Material: LSZH (complies RoHS)
Color: According to the requirement

Sheath Physical Properties
Before Aging                    Tensile Strength (Mpa) ≥ 10.0
Elongation(%) ≥ 125
Aging Period (°C×hrs)   100 °C ×24h×7d
After Aging                       Tensile Strength(Mpa) ≥8.0
Elongation(%) ≥ 100
Cold bend (­-20±2 °C ×4h) No Visible cracks

Electrical Characteristics (20°C)
DC Resistance 20 °C(Ω/100m) max 9.5
DC Conductor Resistance Unbalance (%) max 5.0 ;

Velocity of Propagation (NVP) = 65%;

Mutual Capacitance (1kHz)  Max 6.6nF/100m;

Insulation Resistance: 5000 Mega Ohm-Km min. @ 500 Vdc

1.0 ­- 16.0 MHz Delay Shew 20°C (ns/100m) ≤45;                                                                           1.0 ­- 16.0 MHz Characteristic Impedance (Ω) : 100±15

Surface Printing
Letter height: 3.0±0.3mm
Color: Black
Print error & Space: ≤±1%, 1m

 Packing Length305±1.5m / 500±2.0m

Rip­cord: Yes
Drain wire: No
