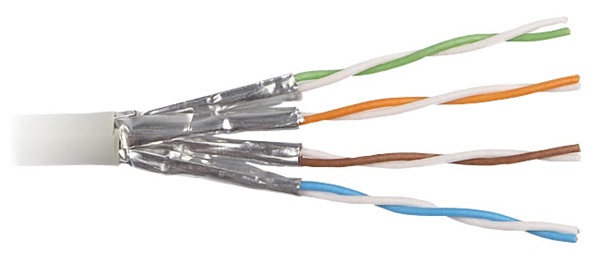

CAT6A F/FTP CABLE (10G)
Part Number
D018x-FFlsc

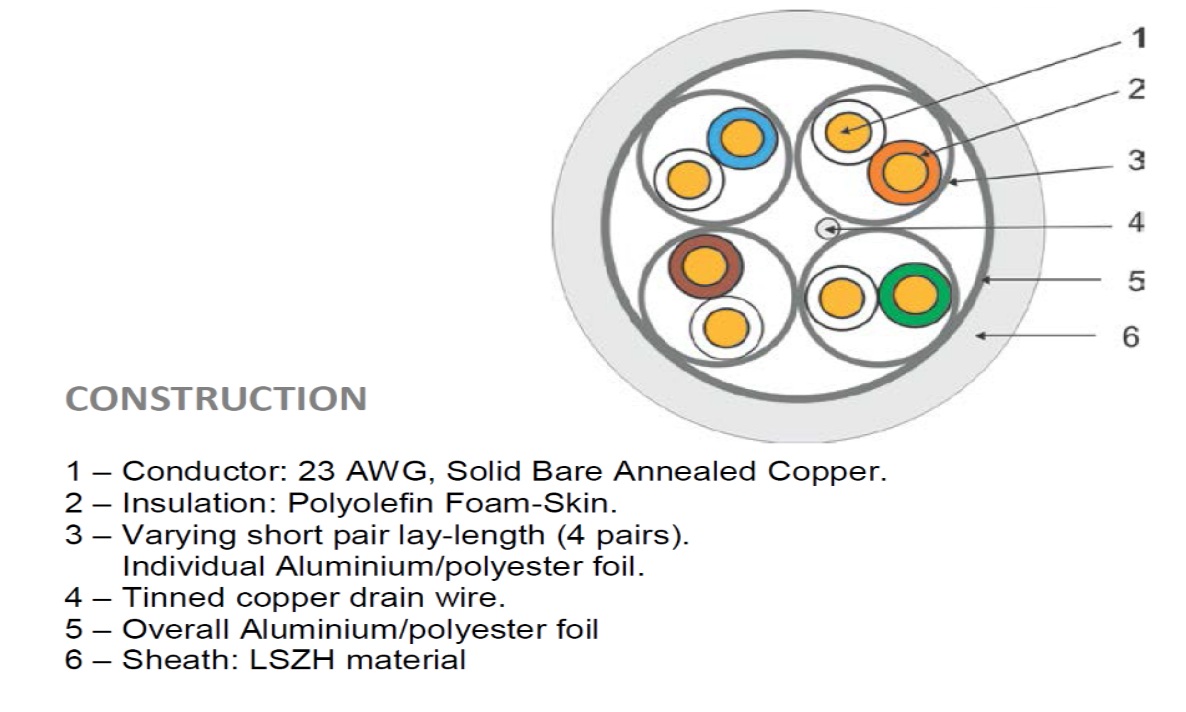

Construction
1. Conductor: 23AWG, Solid Bare Annealed Copper
2. Insulation: Polyolefin Foam-Skin
3. Varying short pair lay-length (4 pairs); Individual Aluminium / Polyester foil
4. Tinned copper drain wire
5. Overall Aluminium/polyester foil 6. Sheath: LSZH material
Standards
ISO/IEC11801, EN 50288-10-1, EN 50173, IEC 61156-5, IEC 60332-1-2, EN 60332-1-2, IEC 60754-2
Dimensional Characteristics
External O.D (mm). : 7.6
Approx. weight (kg/km): 58.0; Min. bending radius (mm): 30.4
Electrical Characteristics (20°C)
Delay Shew (ns/100m) ≤40; NVP 70
Max DC Resistance (Ω/Km) 95.0
Nom. Mutual Capacity (nF/km) @ 1kHz: 56 Propagation delay (ns@10MHz): max. 518 Mean Input Impedance (Ω): 100±5 @ 100 MHz
Applications
10 Base-T (IEEE 802.3); 4/16 Mbps Token Ring (IEEE 802.5); 100Base-VG-AnyLAN; 100 Mbps TP-PMD (ANSI X3T9.5); 100 Base-T (IEEE 802.3); 55/155 Mbps ATM; 1000 Base-T (Gigabit Ethernet); 1.2 Gbps ATM; 10G Base-T
Thermal Characteristics
Storage Temperature range : -20°C up to +70°C
Operating Temperature range : -20°C up to +70°C Laying Temperature range: -5°C up to +50°C
Note
*Standard sheath Color is Grey, different colors can be provided
